Green Earthquake alert in Japan

On 7/16/2007 2:17:03 PM UTC an earthquake of magnitude 6.8 has struck the unpopulated region of Sea Of Japan in Japan.

Humanitarian Impact
Population vulnerability
Tsunami probability
Landslide probability
Nuclear radiation probability

Whether international humanitarian aid is needed must be decided by an expert. However, the following automatically calculated elements can help. This earthquake has potentially a low humanitarian impact and the affected region has low vulnerability to natural disasters.

Explanation of alert calculation:
The impact model combines magnitude (M), population within 100km (P) and vulnerability ECHO average score (V) using the formula:
alertscore = max(M-4.5,0) * log10(max(P / 80000,0))^ 0.5 * max(V,0.5) ^ 1.5 / 3
The weighted product of magnitude, population and vulnerability (0.5) gives an alertscore of 0
Low tsunami probability: the event occurred under water with magnitude less than 7. The alertscore is not modified.
Depth correction: this earthquake occurred more than 300km deep. The alertscore is set to 0.
Then alert is Red if alertscore>2, Orange if alertscore>1 and Green if alertscore<=1.

About the data

Source: European-Mediterranean Seismological Centre (EMSC)

Magnitude: definition

Potentially affected People

The population in the area of this earthquake if 0 people/km².

The earthquake occurred at 23h local time. At this time a day, more people are at home and therefore more vulnerable to collapsing residential buildings. During traffic hours, people can be affected by collapsing bridges and other road infrastructure.

About the data

Population data: derived from the LandScan 2002 dataset provided by Oak Ridge National Laboratory, which disaggregated census data into pixels of ~1km² (or 30 arc seconds).

Damage

The affected region has low level of urban area (0.1%) and a medium level of cultivated area (5%). In urban areas more damage can be expected than in cultivated or natural areas.

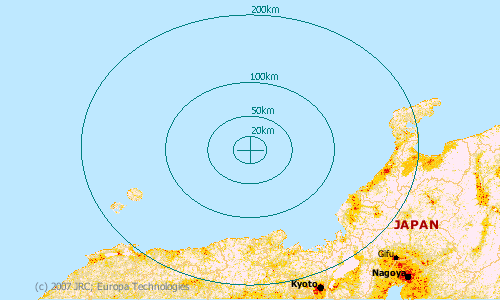

Radius (km)	urban areas	cultivated areas	other
200	0.17%	5.06%	94.75%
100	0%	0%	100%
50	0%	0%	100%
10	0%	0%	100%

In general, earthquakes of magnitude 6 to 7  can be destructive in areas up to about 100 kilometers across where people live.

For more information on the intensity of the earthquake around the epicentre, please refer to the USGS ShakeMap product (http://earthquake.usgs.gov/shakemap/global/shake/index.html)

About the data

Land use data from GLC2000. This data is specific to this earthquake.

This damage assessment is based on the average damage of earthquakes over a 100 year period as compiled by USGS. The information is not specific to this earthquake.

Resilience and Vulnerability

Resilience is the capacity of the population to cope with a hazard. Since much of investments in earthquake preparedness and available funds for quick response is related to household income, the GDP per capita can be used as a rough indicator of resilience.

Japan has a GDP per capita of 42317 PPP$ (Parity Purchasing Power Dollar, about 1 Euro) and is therefore part of the high level income countries. Therefore, the earthquake happened in an area of high resilience.

Based on the combination of 9 indicators, ECHO attributes Japan a low vulnerability.

About the data

Exposure

Both conditions for survival and conditions for delivering aid strongly depend on the current weather and temperature. The following graphs show the current and forecast weather.
Current weather conditions and forecasts at earthquake location (lat: 36.84 - long: 134.82)

More detailed observations at closest weather station (Komatsu): WeatherByWeb - NOAA

About the data

Source: www.calle.com/world. The data is not very reliable, but it gives an indication for remote regions where more detailed information is not available. The data is interpolated for the given latitude and longitude from the closest airport weather stations.

Secondary effects

Probability of secondary effects:

• Landslides: The maximum slope in the area of the earthquake is 0% and the maximum altitude is -122 m. Since this is a low slope, the risk of earthquake induced landslides is low. Note, however, that the slope data is not reliable on a local scale, while landslides depend very much on local topography, soil and meteorological conditions.
• Nuclear power plants: The following nuclear installations are near the epicenter: FUGEN ATR (162km), MIHAMA (163km), MONJU (159km), OHI (163km), SHIKA (172km), TAKAHAMA (160km), TSURUGA (162km)
• Tsunami: based on magnitude alone, there is a low probability of a tsunami. However, this probability must be confirmed by oceanographic measurements or observations. Please refer to NOAA's tsunami alert system for information on tsunamis in the Pacific Ocean: http://tsunami.gov/. In case of a tsunami, the propagation is shown in the figure on top of this report.



About the data

Landslides: slope and altitude are derived from the gtopo30 dataset provided by USGS. The thresholds used for landslide related slope classes are: 0-30% - low risk (green), 30-60% medium risk (orange), 60-100% high risk (red).

Nuclear radiation: the distance to nuclear installations is evaluated based on a 1999 UN dataset containing the location of nuclear plants in the world. If plants are near and the earthquake magnitude is above 6.5, the alert is set to orange. Note that the location of plants is approximate with errors of up to 100km.

Tsunami: The JRC Tsunami model (http://tsunami.jrc.it/model) can be used solely to have a first estimate of the Tsunami wave propagation time. It does not predict predict the occurrence, the initial or final height of the wave, its run-up or the inundation depth.

Description

The earthquake happened in Japan, 152km from the city of Fukui. The nearest populated places are [None].

It is a flat region with a maximum altitude of -122 m.

About the data

Maps and description of location are based on Global Discovery data, provided by Europa Technology. The dataset is based on VMAP0 and is at scale 1:1.000.000.

Getting there and away

The nearest civilian airport (Komatsu) is at 150km from the epicenter. The airfield of Fukui is located at 148km from the epicenter. See the map for more details.

The estimated geographical coordinates of the earthquake are: 36.84 North and 134.82 East.

Dynamic Maps

Mapping material available on the DMA for Japan:

• Interactive Country map: https://dmaweb2.jrc.it/services/dmaexplorer/?Country=Japan
• Interactive Event map: click on maps below

image area: approx. 130x90km2 image area: approx. 65x45km2
